Test scene 5

The source

//bad aa test scene // anthony bennett // feb. 21, 2002
plane
{
  -z,0
  pigment { brick  }
  finish {ambient 1}
  rotate y*35
  translate z*300
}

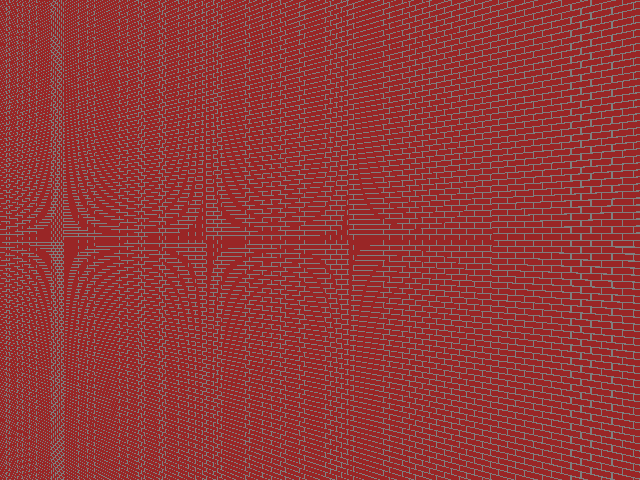

Without Anti-Aliasing

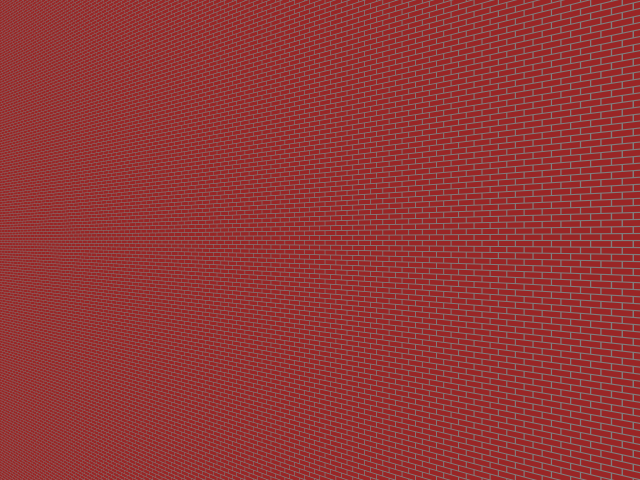

Perfect

Test I - limited at about 4 samples per pixel

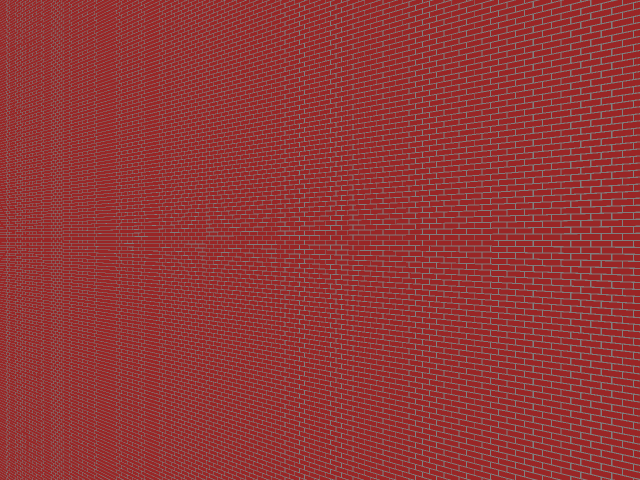

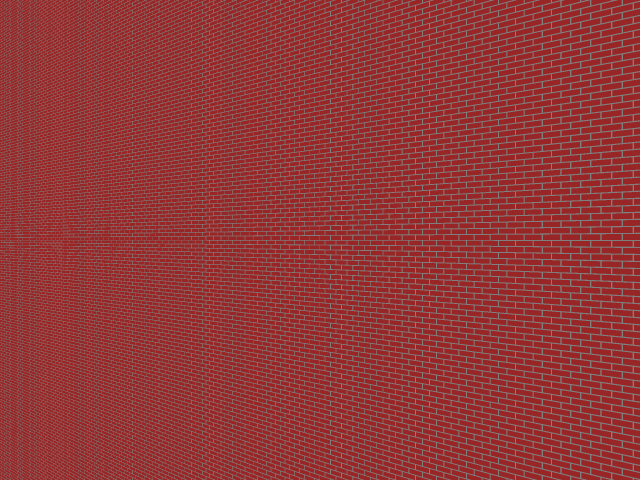

double size and scaling - 4.00 SPP

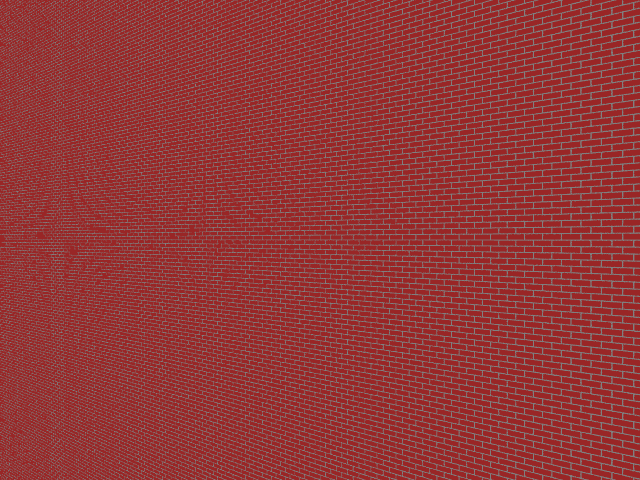

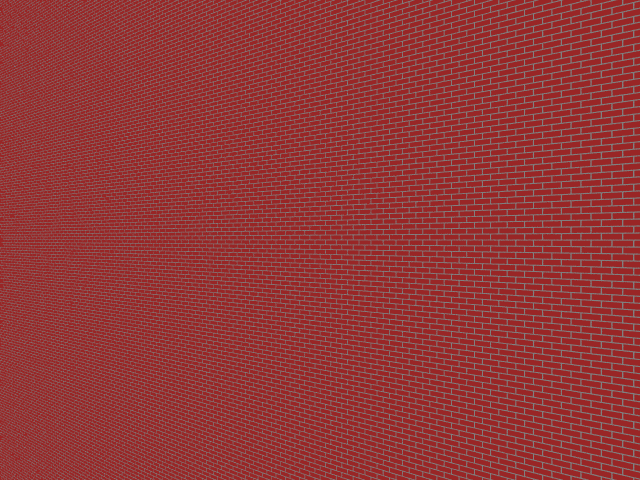

Method 1 (old) [+AM1 +A0.1 +R2 +J1] - 4.04 SPP

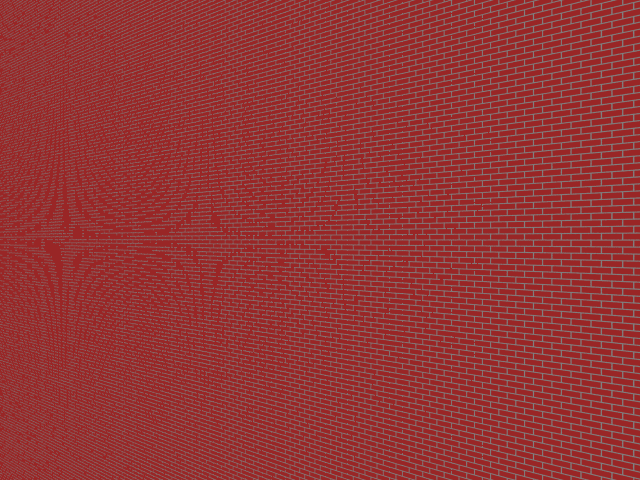

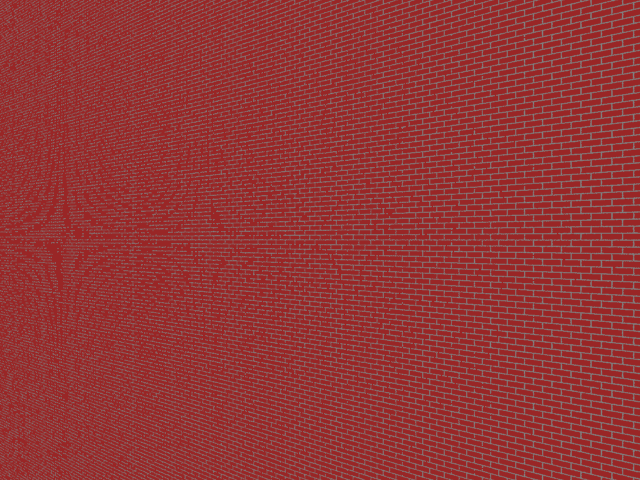

Method 2 (old) [+AM2 +A0.01 +R1 +J1] - 2.77 SPP

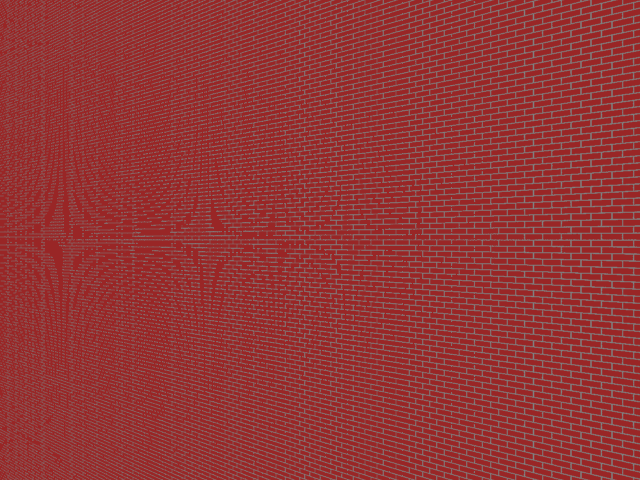

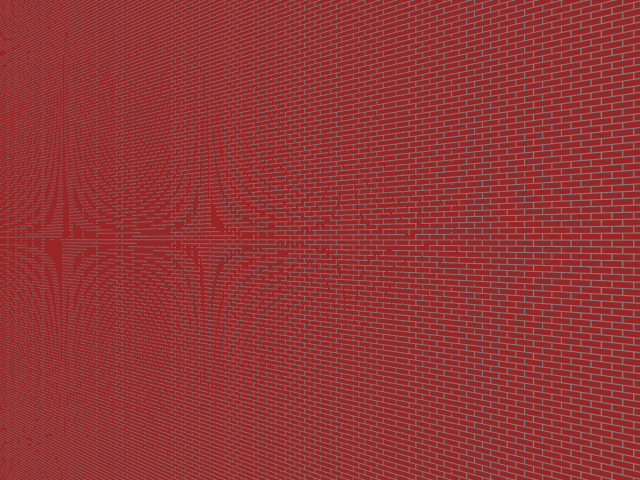

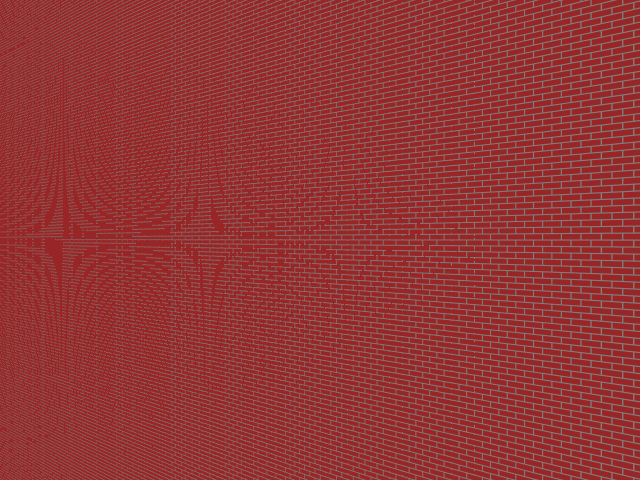

Method 3 (like 2 but mostly using less SPP) [+AM3 +A0.65 +R2 +J1] - 3.73 SPP

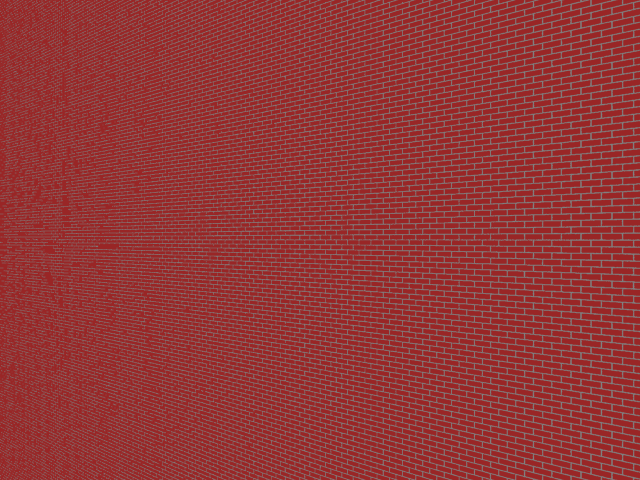

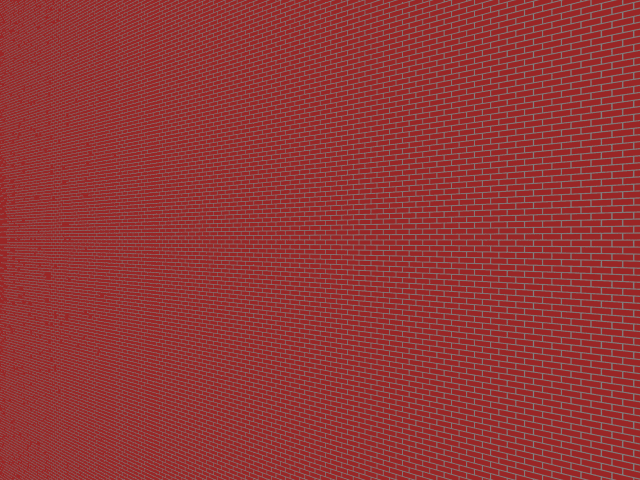

Method 4 [+AM4 +A0.5 +R2 +J1] - 4.38 SPP (updated)

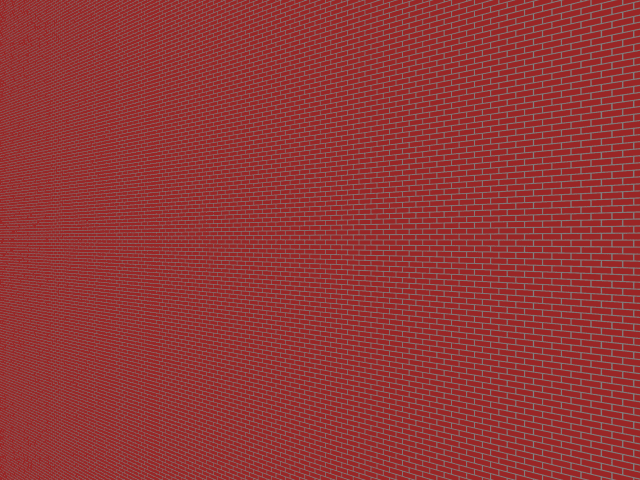

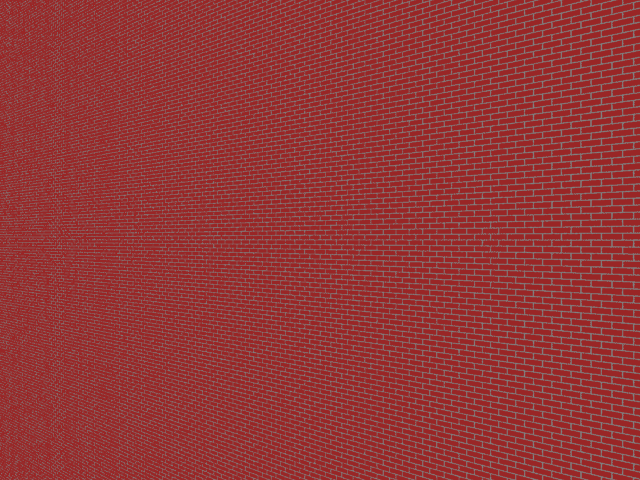

Method 5 (like 4 but forcing midpoint always traced) [+AM5 +A0.01 +R1 +J1] - 2.95 SPP (updated)

Test II - limited at about 9 samples per pixel

triple size and scaling - 9.00 SPP

Method 1 (old) [+AM1 +A0.01 +R3 +J1] - 7.26 SPP

Method 2 (old) [+AM2 +A0.01 +R2 +J1] - 7.12 SPP

Method 3 (like 2 but mostly using less SPP) [+AM3 +A0.35 +R3 +J1] - 9.84 SPP

Method 4 [+AM4 +A0.38 +R3 +J1] - 8.84 SPP (updated)

Method 5 (like 4 but forcing midpoint always traced) [+AM5 +A.4 +R3 +J1] - 9.4 SPP (updated)

Test III - wanting it perfect - no strict limit

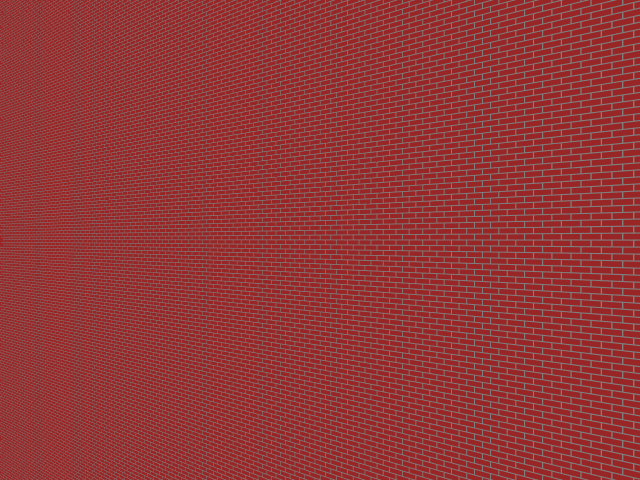

Method 1 (old) [+AM1 +A0.01 +R5 +J1] - 20.03 SPP

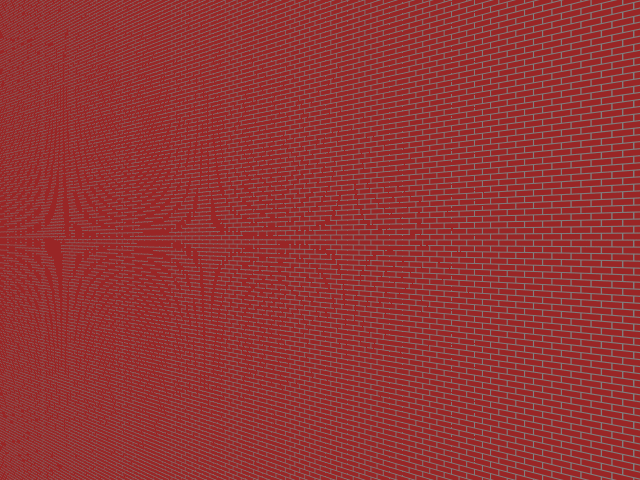

Method 2 (old) [+AM2 +A0.05 +R3 +J1] - 16.67 SPP

Method 3 (like 2 but mostly using less SPP) [+AM3 +A0.15 +R4 +J1] - 23.17 SPP

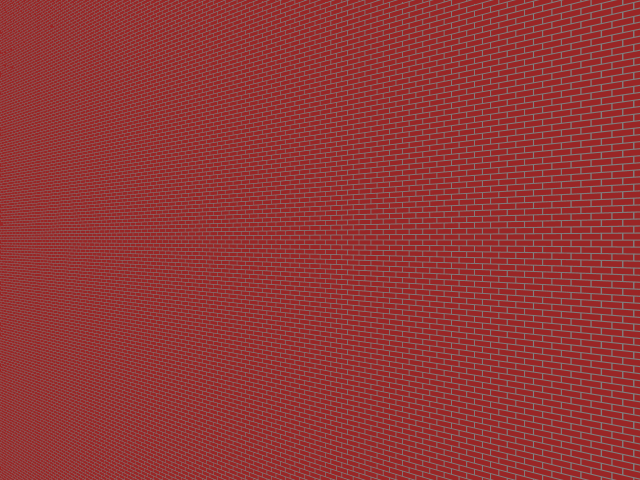

Method 4 [+AM4 +A0.15 +R4 +J0] - 21.86 SPP (updated)

Method 5 (like 4 but forcing midpoint always traced) [+AM5 +A.15 +R4 +J0] - 23.36 SPP (updated)
